| Body structure material | Oxidized profile |
| Carving dimensions (mm) | 400*400mm |
| Overall machine power Electrical power | <60W (laser tube 10W) <96W (laser tube 20V) |
| Carving accuracy | 0.01mm |
| Cooling method | Air-cooled |
| Height of carved object | Less than 70mm (10W) Less than 70mm (20W) |
| Laser eye-protection design | Deliver goggles and module with shading cover |
| Focusing method | Side-mounted knob type / fixed block |
| Laser light power | 3W 7W 1064-1W |
| Laser wavelength | 450±5nm 1064±1 |
| Laser spot size | 0.12*0.08mm (2.5W, 3W) <0.12*0.15mm (6W, 7W) 0.05mm ±1 |
| Laser module lifespan | At a temperature of 27°C, approximately 10,000 hours |
| Engraving speed | Sculpting speed: 10000mm/min |
| Laser stability | The design of the driver board, laser chip, heat dissipation, etc. is reasonable, and the optical and electrical performance is stable. |
| Motherboard | esp32 high-speed double-sided glass fiber board |
| Data transmission | USB to serial port wired transmission |
| Operating software | Lightburn/GRBL software platform (computer application) |
| Supported formats | .JPEG/BMP/JPG/GIF/PLT/PNG/CUTLABX .DXF/PLT/HPGL; GRBL: .JPG/BMP/PNG/GIF.NC etc. |
| Supported systems | Lightburn (Windows, macOS), LaserGRBL (Windows) |
| Applying voltage | 100 - 240V / 50 - 60HZ (Power Adapter) |
| Machine input voltage | DC12V |
| Motors and processors | |
| Motor | Stepper motor |
| Motor drive | Stepper motor driver chip |
| Processor | 32-bit high-speed MCU |
| Model |  ARTILUME U1Buy Now |  ARTILUME T1Buy Now |
| Laser module | 3W/7W / 12W diode laser 1W infrared laser | 3W / 7W diode laser 1W infrared laser |
| Laser Type | Semiconductor diode laser 1W infrared laser | Semiconductor diode laser 1W infrared laser |
| Laser wavelength | Diode laser: 455nm 1W infrared laser: 1064nm | Diode laser: 455nm 1W infrared laser: 1064nm |
| Laser spot size | 3.7.12W diode laser: 0.12*0.15mm 1W infrared laser: 0.05* 0.05mm | 3W diode laser: 0.12*0.08mm 7W diode laser: 0.12*0.15mm 1Winfrared laser:0.05*0.05mm |

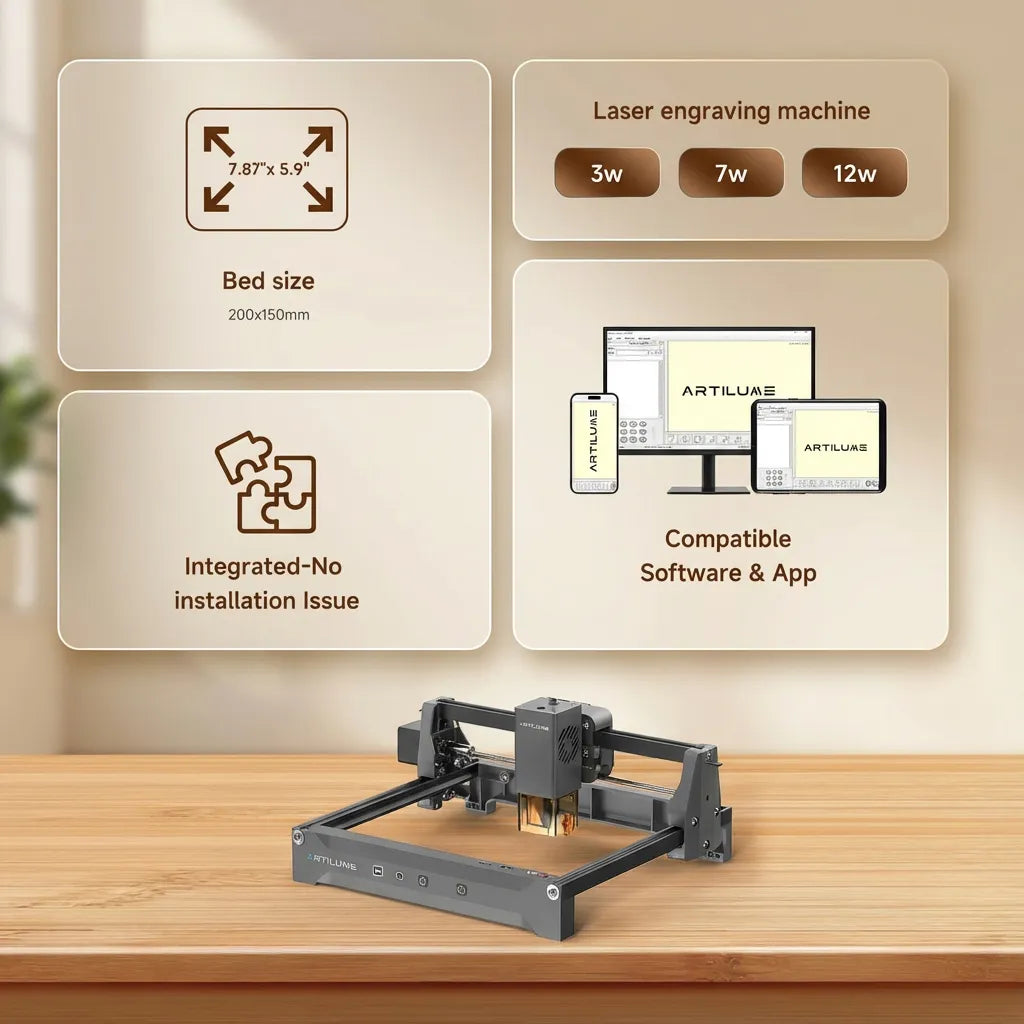

| Working area | 200*150mm | 200*150mm |

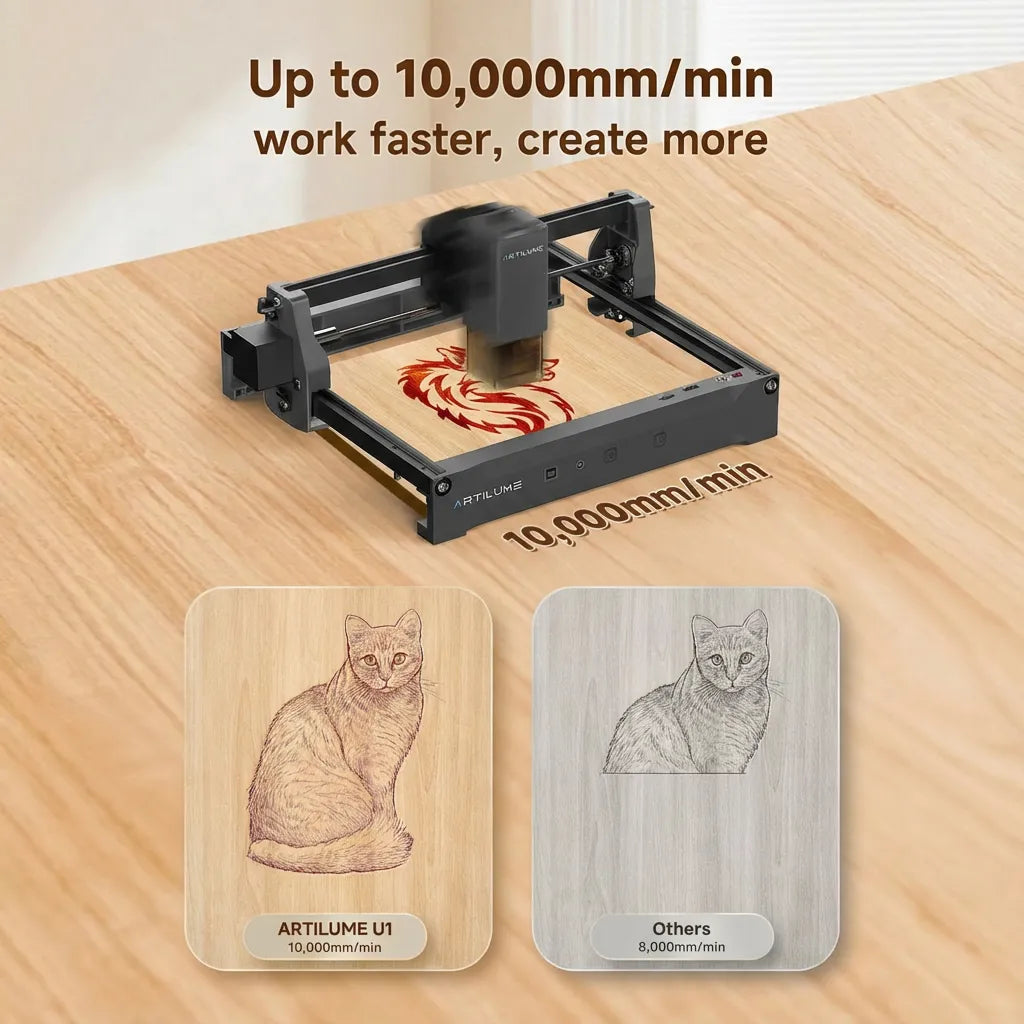

| Maximum working speed | 7000mm/min | 10000mm/min |
| Engraving accuracy | 0.01mm | 0.01mm |
| Laser head service life | At a temperature of 27¡ãC for approximately 10,000 hours | At a temperature of 27¡ãC for approximately 10,000 hours |
| Machine size | 340*290*148mm | 369*360*147mm |
| Machine weight | 5W 1.27kg 12W 1.38kg | 3W/7W: 1.36kg 1W: 1.48kg |
| Software Support | CutLabX (Windows¡¢macOS¡¢ Android¡¢ lOS) LightBurn(Windows¡¢macOS) LaserGRBL(Windows) | LightBurn(Windows¡¢ macOS) LaserGRBL (Windows) |
| Connection Methods | USB/Wi-Fi | USB |
| Motion structure | Pulley | Pulley |
| Focus mode | Manual focusing | Manual focusing |
| Pre-assembly | Yes | Yes |
| Support format | CutLabX software platform lmage format: JPEG/BMP/JPG/PNG/CUTLABX Vector format: DXF GRBL software platform: NC/BMP/JPG/PNG/DXF, etc. formats | Lightburn: Image format:JPEG/BMP/JPG/GIF/PLT/CUTLABX Vector format:DXF/PLT/HEGL GRBL software platform:JPG.BMP.PNG.GIF.NC.etc.fotmats |
| Support material | Diode laser:Paper, wood chips, plastic, leather, fabric,cardboard, leather, stone, ceramics, stainless steel,coatedmetal, certain dark packaging acrylic, etc. 1W infrared laser engraving for stainless steel,aluminum, brass, iron, gold, platinum, titanium, black acrylic, plastic & more. | Diode laser:Paper, wood chips, plastic, leather, fabric,cardboard, leather, stone, ceramics, stainless steel, coated metal, certain dark packaging acrylic, etc. 1W infrared laser engraving for stainless steel, aluminum,brass, iron, gold, platinum, titanium, black acrylic, plastic& more. |
| Supported accessories | Air pump /Honeycomb panel / Heightening column Air pump / Honeycomb panelRotating gripper disc / Rotating shaft | Air pump / Honeycomb panel Rotating gripper disc / Rotating shaft |
